Product Description

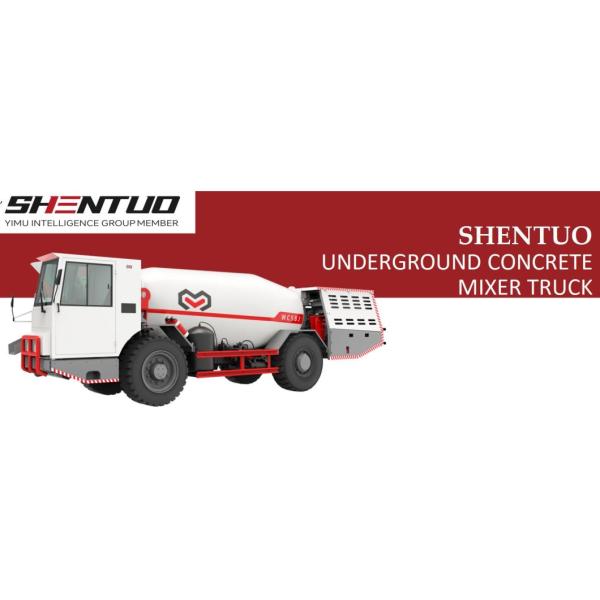

Shentuo WC5BJ is an explosion-proof diesel engine concrete mixer truck for underground use, suitable for coal mine concrete transfer.
It can be directly loaded at the concrete station or underground concrete station and transported to the underground, without secondary transportation. During the transportation process, the tank rotates and mixes uninterruptedly, which can significantly improve the efficiency and quality of concrete transportation.
The external dimensions of the WC5BJ model can be adjusted, and it is suitable for working conditions such as tank cages that have stricter requirements on the size of the vehicle. It is the smallest external dimension among the 5 cubic models on the market and is more flexible to use. At the same time, the car has two-wheel drive and four-wheel drive switching function plus inter-axle differential, which can adapt to various extreme road conditions and has low fuel consumption. PART-TIME 4WD, esasy change between 2WD and 4WD, Better performance.
The vehicle is equipped with a transfer case with an inter-axle differential to improve transmission efficiency, reduce tire wear and reduce fuel consumption.
Feeding and discharging ports are in the front, Better operating field of view.
The vehicle body is much shorter, suitble for the underground mining.
The front axle use hydro pneumatic suspension system, better driving comfort
The powertrain is in the rear of the vehicle, far away from the concrete outlet, effectively avoiding contamination by concrete.
Optional reversing camera for safer driving
The transmission system adopts mechanical transmission, the power transmission is more stable and reliable.
Product Parameters
| Item | Unit | WC5BJ |
| Mixing Drum Capacity | m³ | 5 |
| Operating Weight | kg | 10500 |
| Rated load capacity | kg | 12000 |
| Traction Force | kN | 150 |
| Feeding Speed | m³/min | ≥2.7 |
| Output Speed | m³/min | ≥0.65 |
| Drive Type | | 4×4/4×2 |
| Transmission Type | | Hydromechanical |
| Brake Type | Working Brake | Spring Applied and Hydraulic Released Equipment |
| Parking Brake |
| Dimension | mm | L | 6890 |
| W | 2000 |
| H | 2250 |
| Ground Clearance | mm | 230 |
| Wheelbase | mm | 3000 |
| wheel Distance | mm | Front wheel | 1740 |
| Rear wheel | 1630 |
| Turning Radius | mm | Inner | 3500 |
| Outer | 7450 |
| Approach /Departure Angle | ° | 19/17 |
| Speed | km/h | 1st Gear | 4 |
| 2nd Gear | 7 |
| 3rd Gear | 11 |
| 4th Gear | 15 |
| 5th Gear | 21 |
| 6th Gear | 24 |
| 7th Gear | 30 |
| 1st Gear Backward | 4 |
| Gradeability | % | 25 |
| Power | kW | 165 |
| Torque | Nm | 880 |
| Engine Speed | rpm | 2100 |
| Displacement | L | 6.7 |
| Fuel Tank Refill capacity | L | 180 |
Company Profile
Hubei Shentuo Intelligence Equipment Co., Ltd. is a wholly-owned subsidiary of Yimu Intelligence Technology Co., Ltd. and consists of Hubei Suizhou production plant and Wuhan R&D center, which is a technology-based enterprise focusing on the research and development, production, sales, after-sales and export of underground equipment for coal and metal mines, aiming at the global market with its products.
Shentuo Intelligence is based on scientific and technological innovation and oriented to customers' needs. Currently, Shentuo Intelligence has a new generation of concrete mixer trucks, loaders, mine trucks and other series of diesel and purely electric models, which can adapt to customers' mining needs in a variety of situations, improve the productivity and economic benefits of mining, and strive to improve the sense of safety and happiness of underground workers.
Shentuo Intelligence adopts advanced quality management system to provide first-class quality underground equipment: at the same time, Shentuo Intelligence adheres to intelligent manufacturing, and builds up the leading manufacturing capacity of underground equipment industry through advanced ERP and informationization system to ensure the delivery cycle. In the future, Shentuo Intelligence will continue to be committed to all-round innovation, provide the most intelligent and efficient technology and products for the domestic and international mining industry, and make continuous efforts to promote productivity enhancement, industry development and ESG construction!
Exhibition
Certifications
Packaging & Shipping
Our Advantages
FAQ
1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T and other terms is also negotiable.
2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW.
3. Q: What about the delivery time?
A:It depends on the model, usually 2-6 months after receiving the deposit.
4. Q: What about the warranty time?
A: In12 months after shipment, o within 2000 hours of equipment operation, we can provide the free repair service.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
